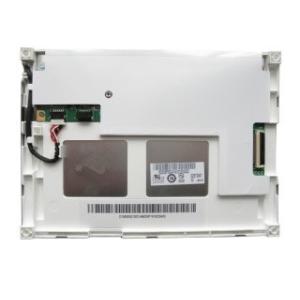

G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : AUO

Model Number : G057VN01 V2

Certification : ISO9002

Place of Origin : CHINA

MOQ : 1PCS

Price : USD70

Payment Terms : T/T, Western Union, PAYPAL, ESCROW

Supply Ability : 3000PCS/MONTH

Delivery Time : 1-3 days

Packaging Details : 14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H

SIZE : 5.7

PIXEL : 640(RGB)×480 (VGA) 141PPI

BRIGHTNESS : 700 (Typ.)(cd/m²)

SIGNALTYPE : CMOS (1 ch, 6-bit) , 33 pins Connector

Viewing Angle : 80/80/70/70 (Typ.)(CR≥10)

Bezel Opening : 118.2(W)×89.4(H) mm

Environment : Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

Contact Now

AUO G057VN01 V2 Mechanical Details

Pixel Features :	Pixel Format 640(RGB)×480, VGA Dot Pitch 0.060×0.180 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.180×0.180 mm (H×V) [141PPI]
Mechanical Size :	Display Area 115.2×86.4 mm (H×V) Bezel Area 118.2×89.4 mm (H×V) Outline Dim. 144×104.6 mm (H×V) Outline Depth 12.3/12.8 (Typ./Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Rear mounting holes (4-Φ2.6)
Other Features :	Weight 150/165g (Typ./Max.) Surface Antiglare, Hard coating (3H)

Basic Information :	Brightness 700 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Viewing Angle 80/80/70/70 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 12 o'clock Response Time 15/10 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit) Color Temperature 6485K Uniformity 1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 49% sRGB 68% coverage Adobe RGB 51% coverage DCI-P3 51% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmittance -
